Dig Hole on Model

Dig Hole on Model

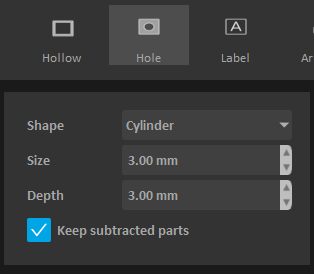

Press button【Hole】in the top toolbar to pop up the "Hole" box.


The Hole function is more likely to be used with the hollow function. The holes can let the air and excess resin out.
  1. Shape: The shape of the hole
  1. Size: Diameter of the hole
  1. Depth: The depth of the hole
Keep subtracted parts: After the hole is punched, the subtracted parts will be cut off to form a new model. If the box is selected, the subtracted parts will be retained, otherwise will be deleted.
  1. Select a shape
  2. Adjust the size and depth
  3. Choose whether to "keep subtracted parts"
  4. And then move the mouse and click on the target location of the model to make a hole


Keyword: Boolen , boolen operate, dig hole
