How to deal with the resin on the LCD screen

How to deal with the resin on the LCD screen

Possible Causes

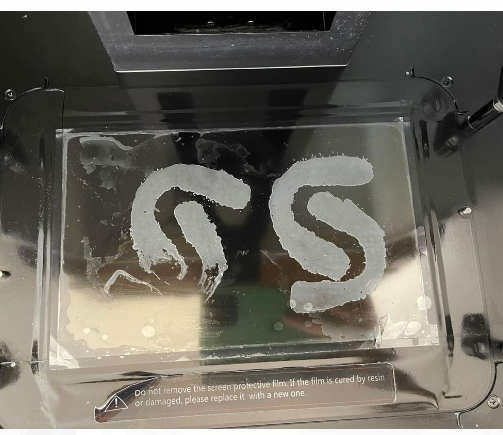

  1. Accidentally dripping resin onto the LCD screen when moving the build platform or resin tank.

  2. The damage of the resin tank led to the resin seep onto the LCD screen during the printing process.
In daily use, please keep the LCD screen protector clean. If it is damaged or scratched, please replace it immediately.

Operating steps

  1. If the resin has not been solidified yet, wipe the liquid resin immediately with a lint-free cloth with alcohol.

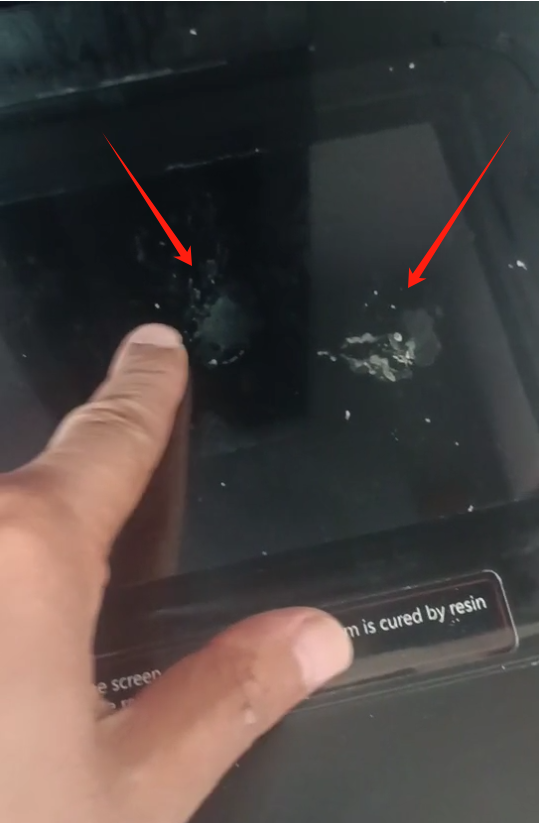

  2. If the resin has been solidified, please remove the contaminated protective film and observe the screen status. If the screen is not contaminated, please refer to the video tutorial to replace the screen protector: https://youtu.be/NcHVvSR3Bz0. If the screen is contaminated and cannot be cleaned with alcohol, please replace the LCD screen . For the replacement tutorial, please refer to the video: https://youtu.be/Lrly6qAOGT4.
  3. Inspect the resin tank film for any signs of damage, holes, scratches, wrinkles etc. Replace the resin tank or replace the resin tank film once damaged, see help page: How To Change Resin Tank Film (NBEE, NBEE D, NBEE H)

Conclusion

By following the operating steps outlined in this article, you should be able to deal with the resin on the LCD screen. If you have further questions, please contact our customer support support@uniz.com or refer to your printer's user manual for more assistance.
Remember to customize the example to your specific 3D LCD printer model and provide any additional information that may be relevant to your product.
