LCD screen is fully exposed during printing

LCD screen is fully exposed during printing

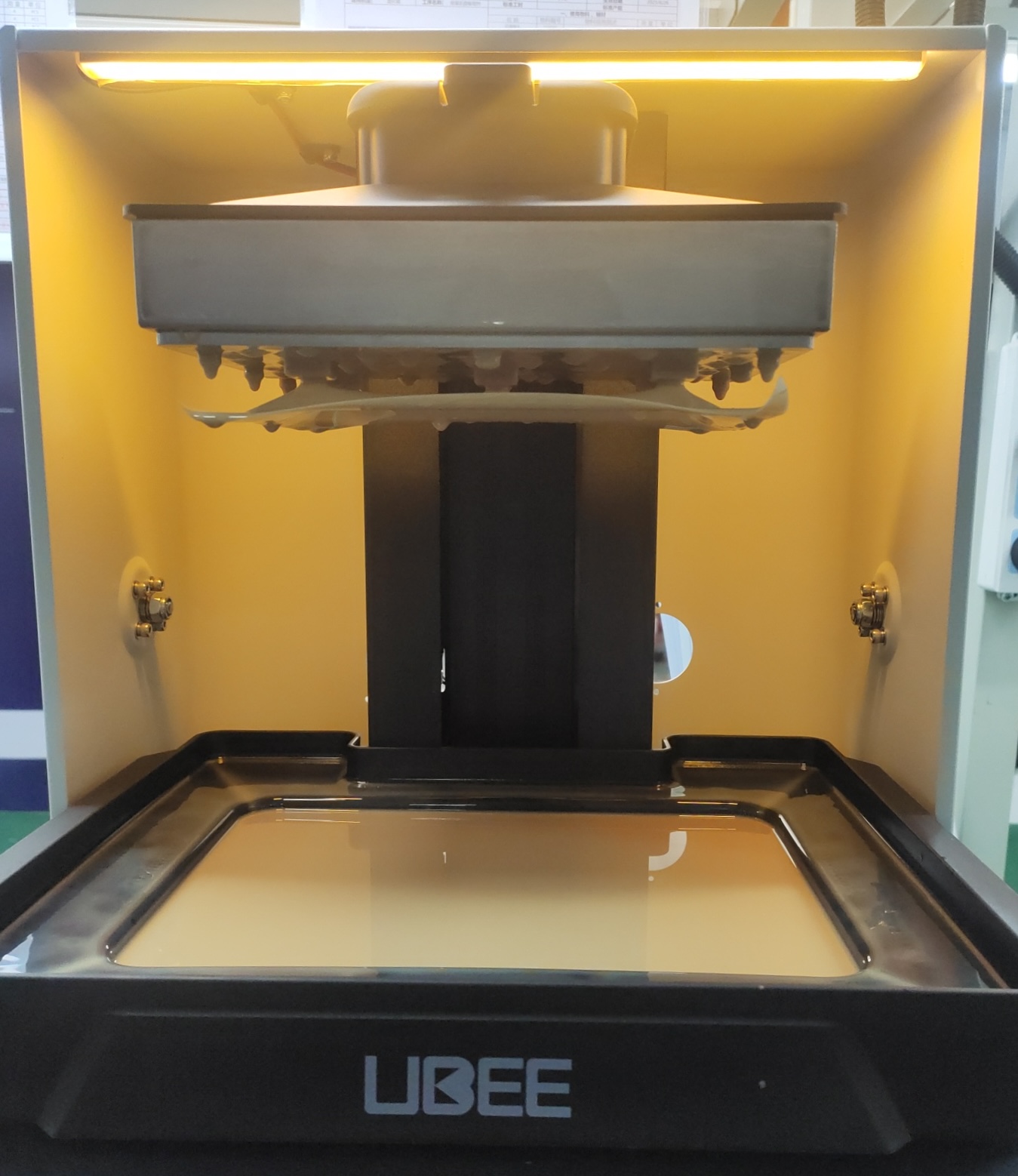

This article applies to UBEE.

Symptom

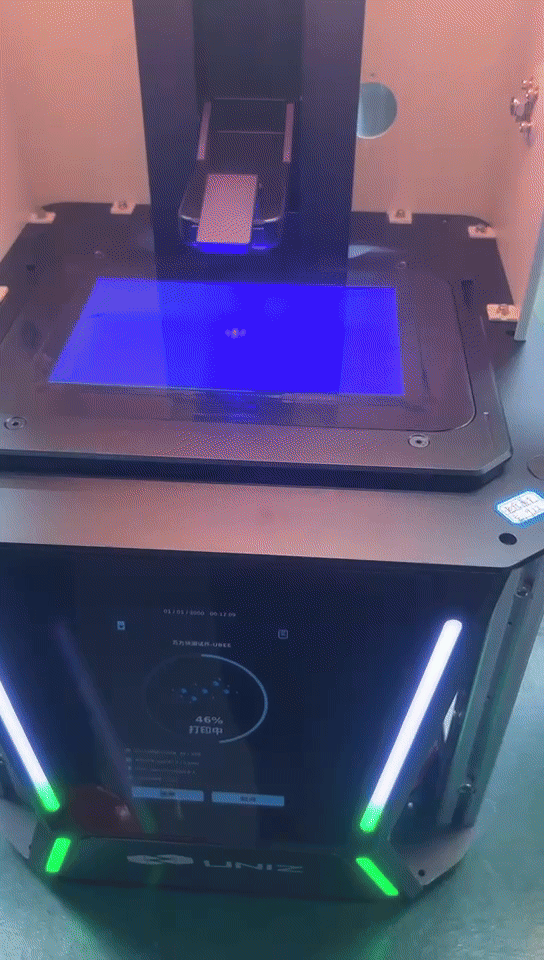

When printing, the LCD screen is fully exposed.




Common causes

HDMI driver board is affected by electrostatic.

Operations steps

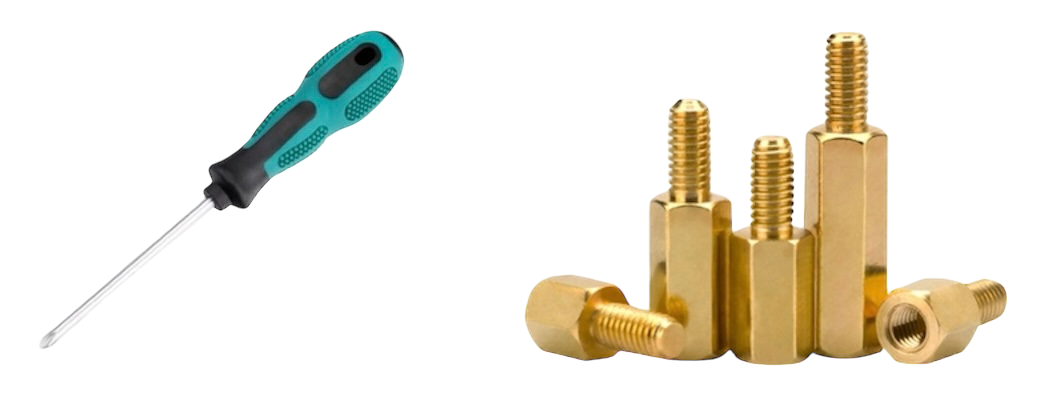

Preparations:

Phillips screwdriver * 1

Isolating copper pillar M2.5 * 4


Operation steps

1. Turn off the printer.

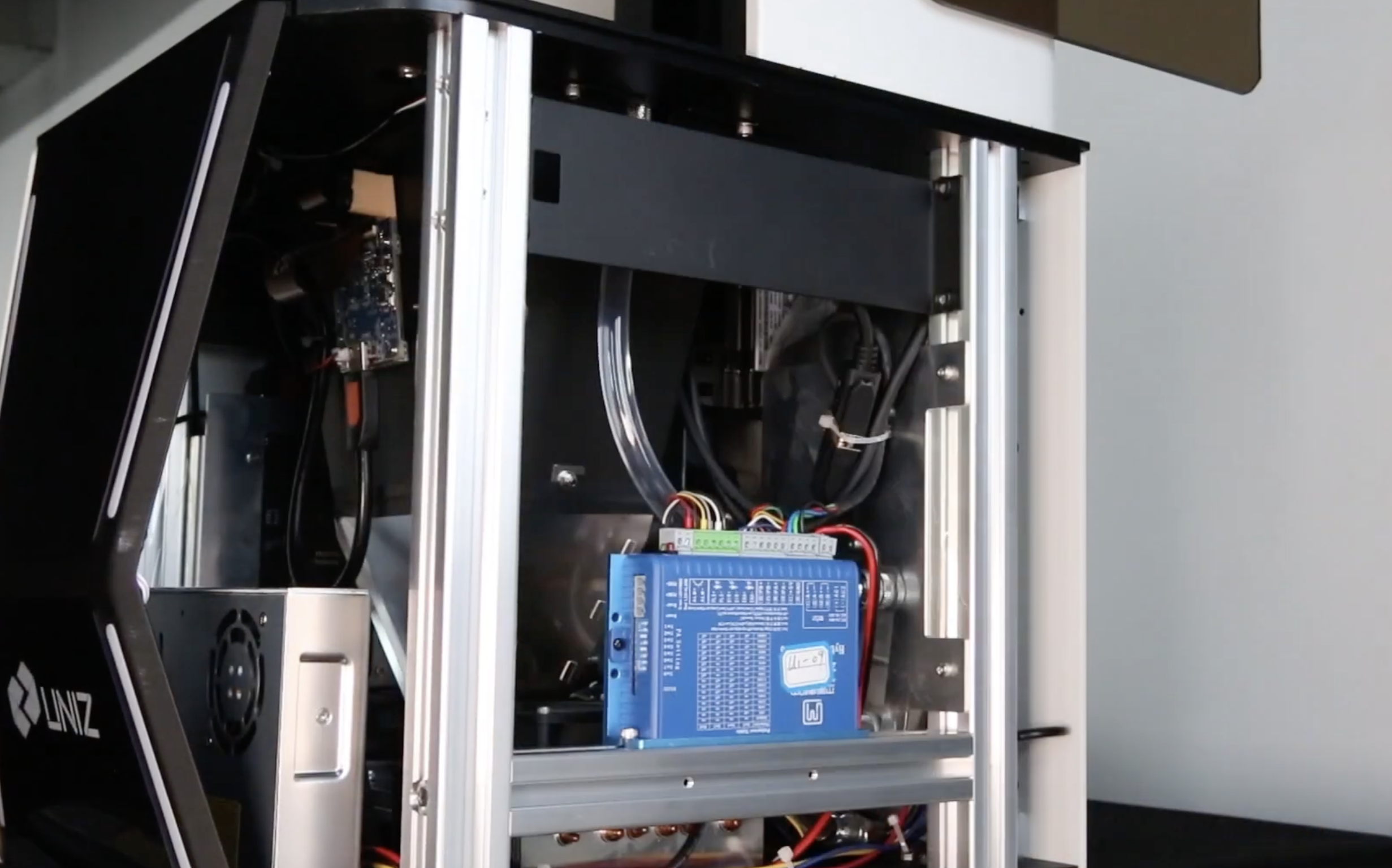

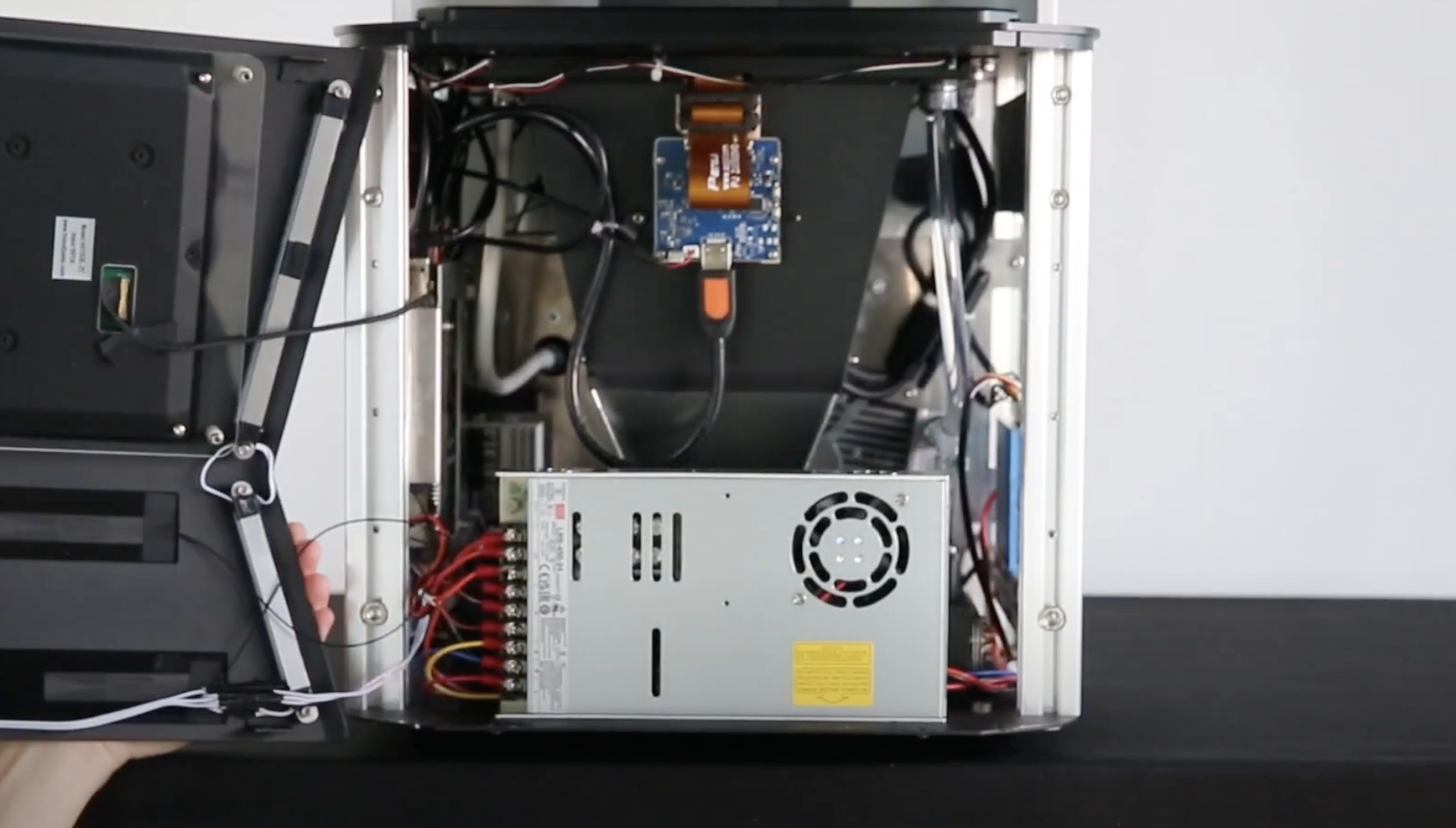

2. Remove side casings and front casing of UBEE.
Info
Info: Please refer to the operation of removing casings of UBEE in the following video.

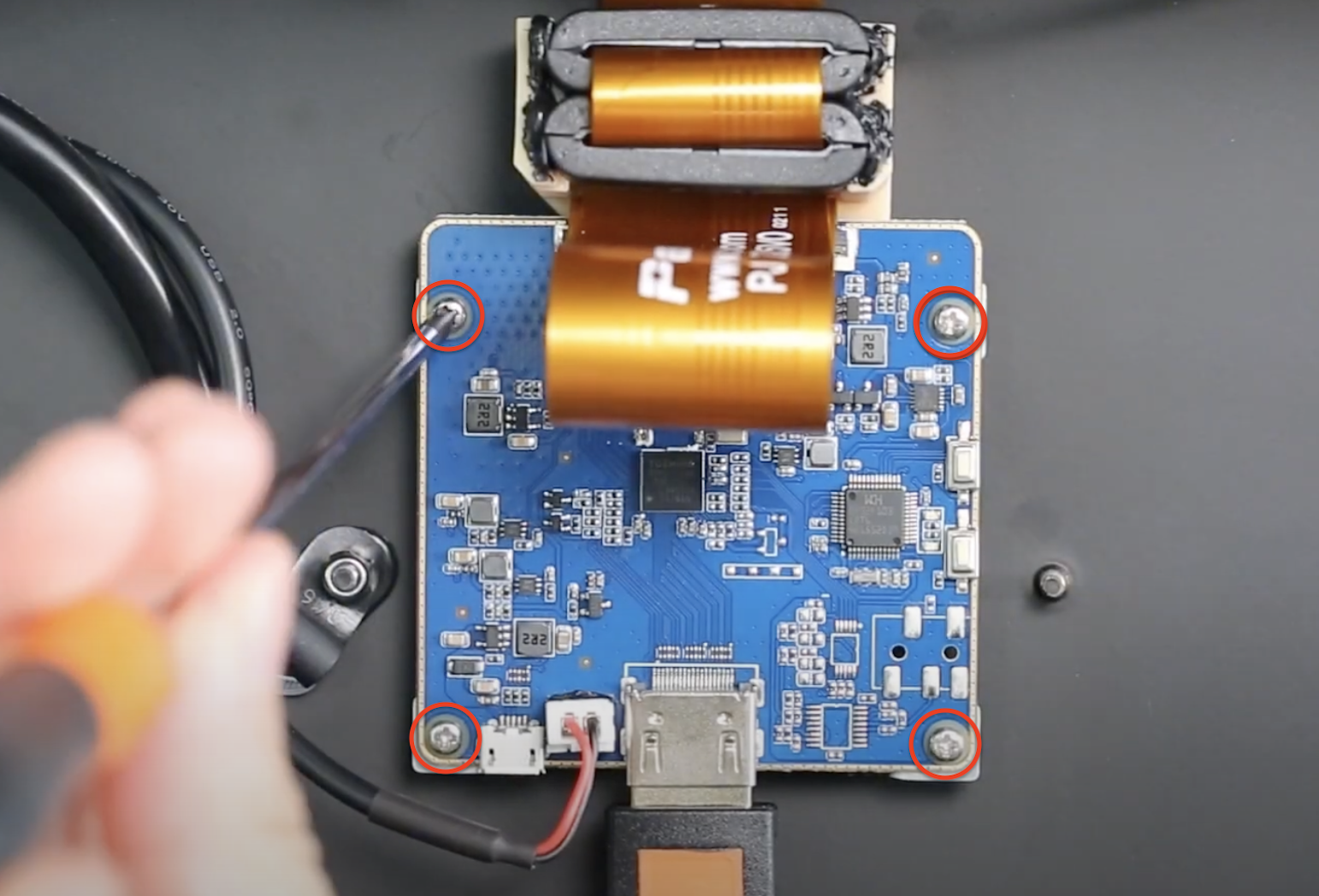

3. Remove 4 screws of HDMI driver board.

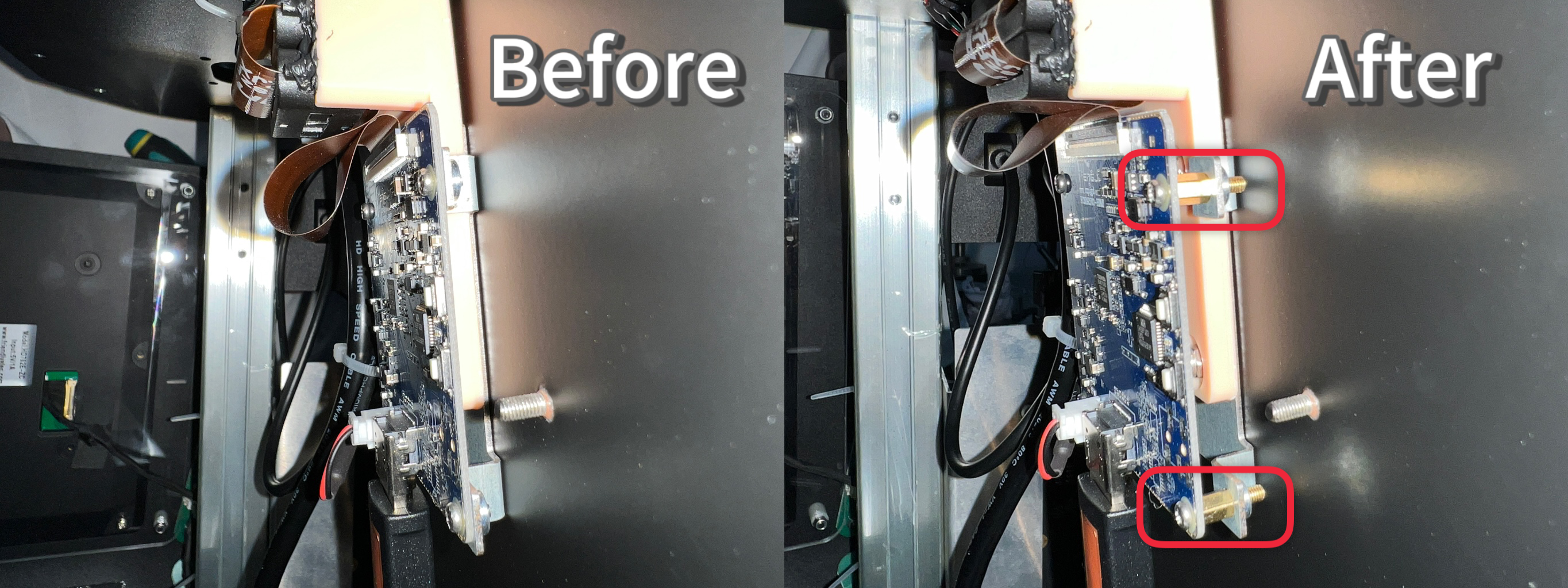

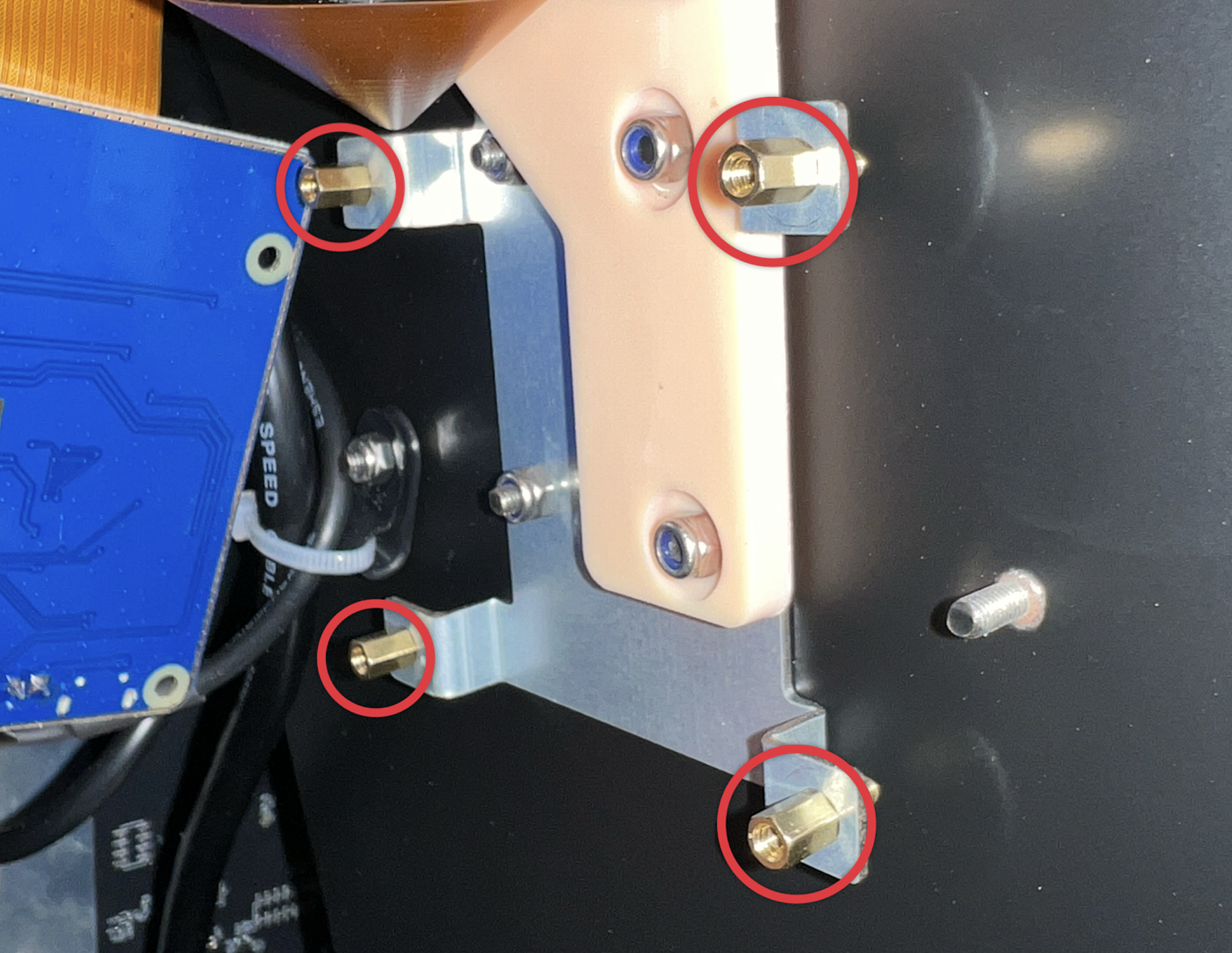

4. Install the 4 isolating copper pillars under the HDMI driver board.

5. Install the 4 screws, to fix HDMI board to the isolating  copper pillars.

6. Restore the installation of casings and finish.

Conclusion

By following the above-mentioned diagnostic steps, you should be able to troubleshoot the electrostatic issue, if the problem persists, please contact support@uniz.com.
