LCD TEST for NBEE

LCD TEST

Function introduction

LCD Test is a tool designed to check the status of the LCD screen. It serves as a troubleshooting method to diagnose or identify issues related to the LCD.

Operation steps

1. Remove the build platform and resin tank.

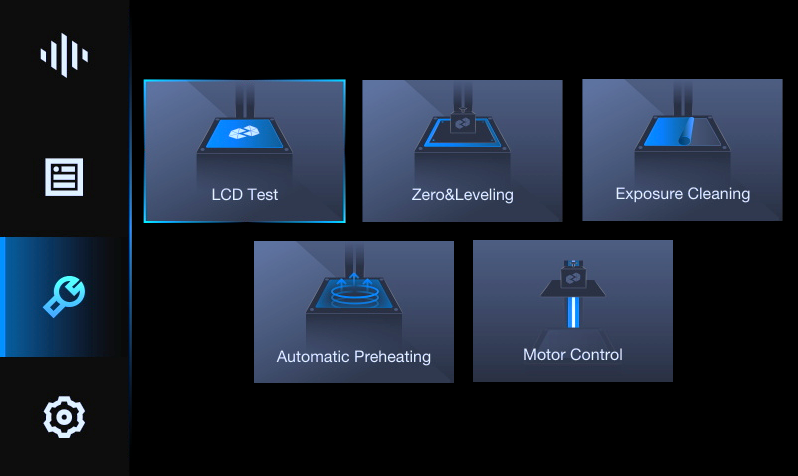

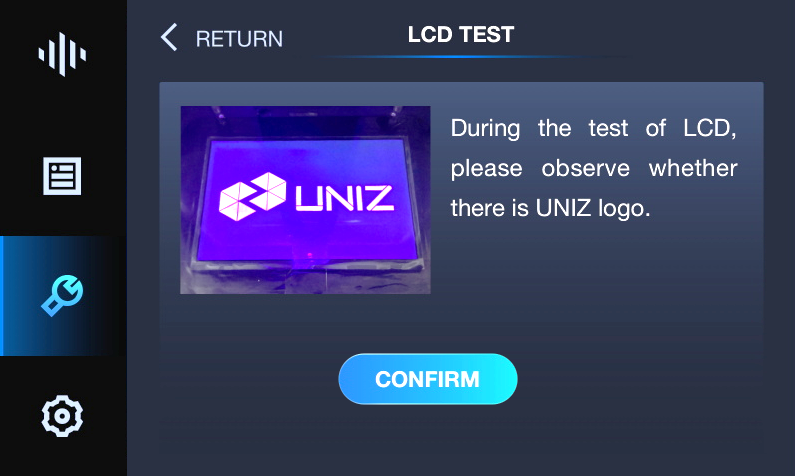

2. Enter TOOLS/LCD TEST, the UNIZ logo will appear on the LCD screen.




3. If the UNIZ logo displays normally and completely without any damaged spots, vertical lines, or any other anomalies, the LCD screen is in good condition. Otherwise, the LCD screen may have defects and requires further diagnosis.
