Moving a Model in UNIZ Dental

Moving a Model in UNIZ Dental

Change Position

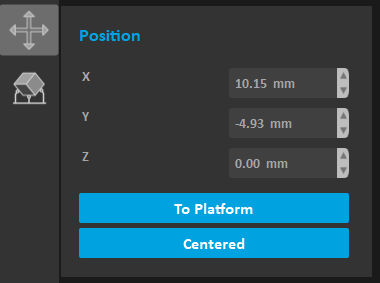

Pressing buttom will open following sub menu.

Once the Position tab is open, hold the left mouse button on the object and move the mouse to move the object freely in the X-Y plane. If the Shift key is held down, the object will be moved up and down along the Z-axis instead.

Select the model, the manipulators will be suspended on the model. Press the left mouse on the circle of the manipulators to drag and release, the model will rotate around the corresponding axis.

The activated object can also be moved by inputting X/Y/Z values in the field, press Enter to apply changes. Users can also click the up and down button to change the position.
  1. Click the "Center" button to move the selected model to the center of the XY plane.
  1. Click the "To Platform" button to modify the Z value of the selected model to zero, and the model will contact with platform.
