New features in UNIZ Dental version 2.6.1.12

New features in UNIZ Dental version 2.6.1.12

UNIZ Dental software has supported upgrading to version 2.6.1.12. This major upgrade includes five exciting and important features that will add more convenience and fun to the printing process.

1.Collision detection function

This function is used to detect whether the models overlap and display the overlapping models in red. When the models are displayed in red, the problem can be solved by increasing the gap between the models.

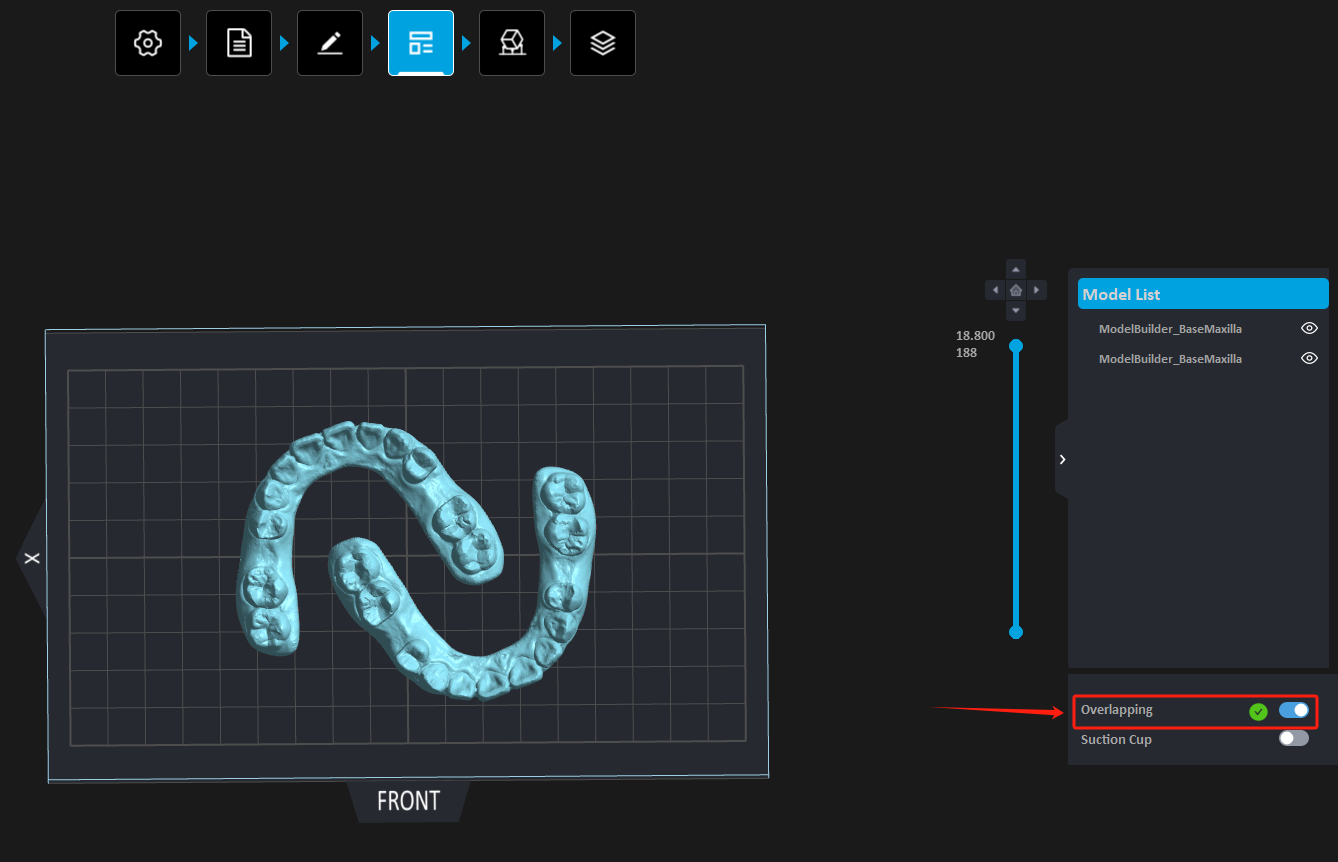

Enable or disable the function

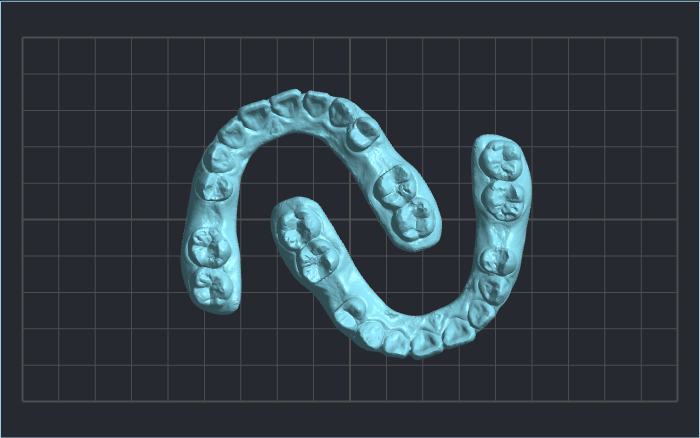

Normal state

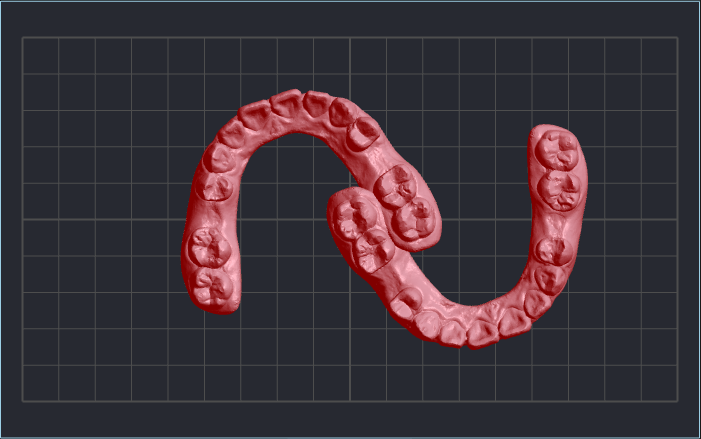

Abnormal state

2.Cavity detection function

This function is used to mark the cavity area with yellow line. When yellow lines appear, the problem can be solved by drilling holes at the side bottom of the model.

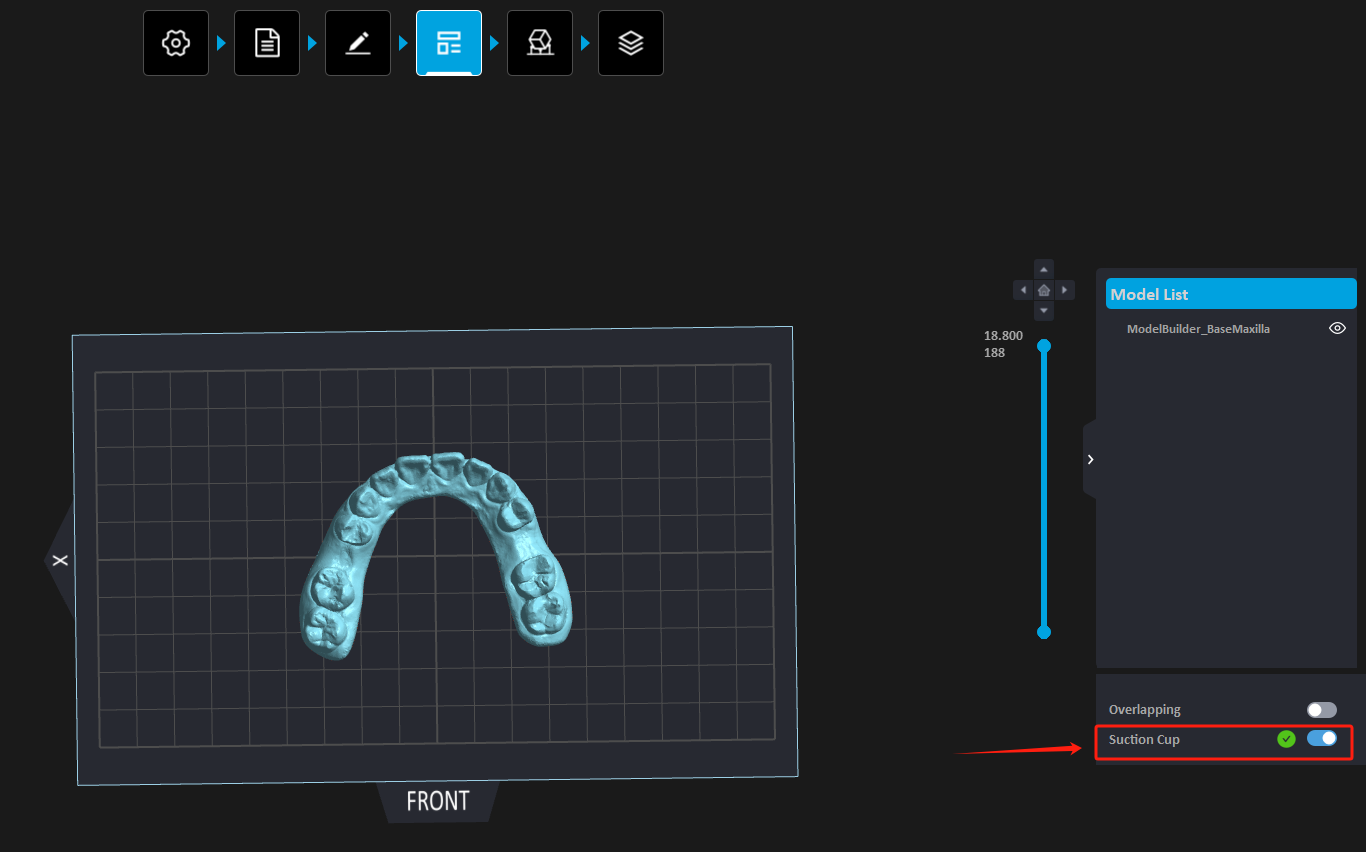

Enable or disable the function

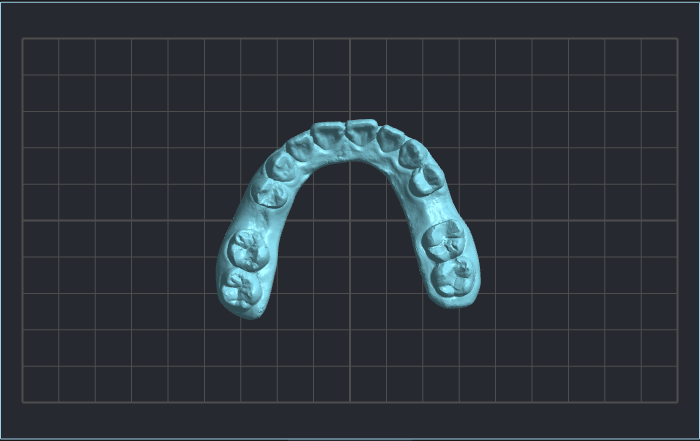

Normal state

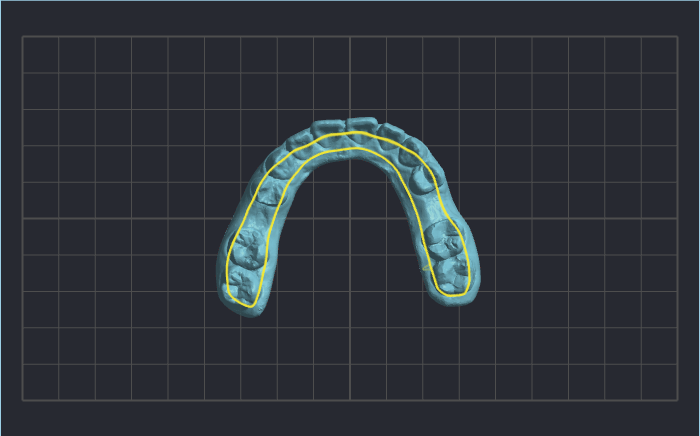

Abnormal state

3.Two types of support addition modes

It provides two different modes for adding the supports, The simple mode are the default settings which allow automatically generate supports for the matched indication and cannot be manually modified; However, the advanced mode can be manually adjusted by professional technicians according to the actual situation.

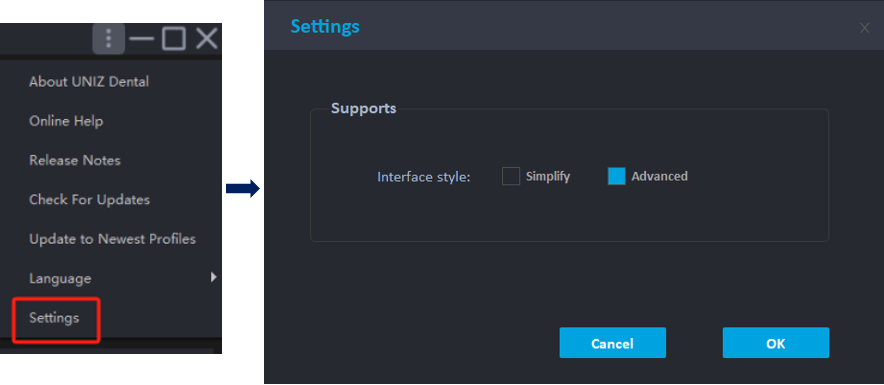

Switch modes

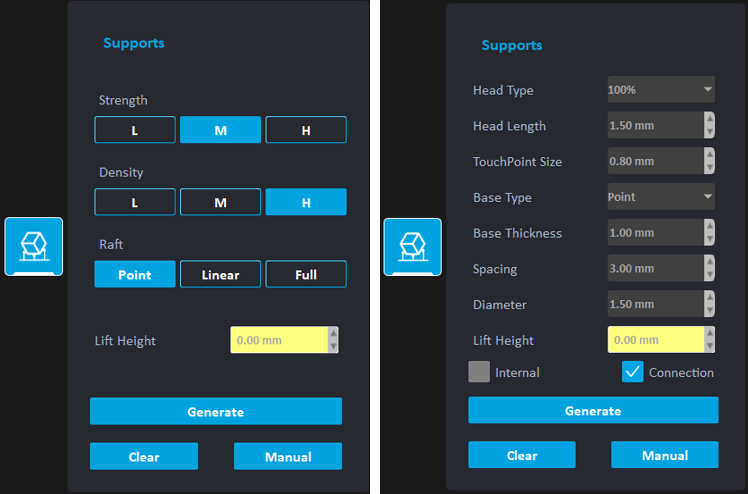

Simple mode vs. advanced mode

4.One-click printing function

The preset setting which allow user to perform quick slicing a batch of model by using the auto rotation placement strategy, support parameters, and slicing parameters.
Notes
The function is not supported in the "scan to model" indication.

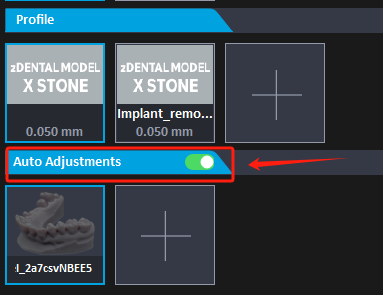

Enable or disable the function

5.Multi-segment parameters

This function is mainly applicable to UBEE.

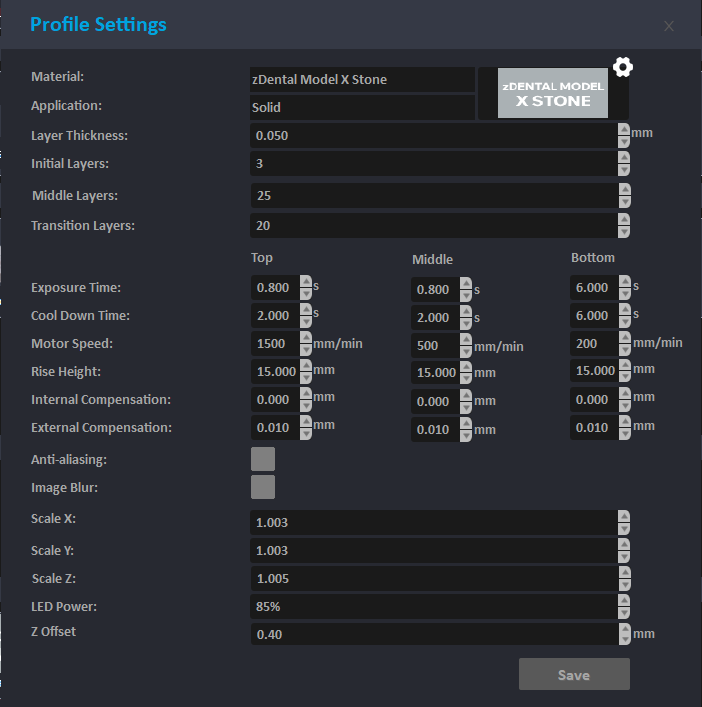

Added new middle layer parameters and Z offset

Conclusion

By studying the above, you will have a basic grasp of the new software. If you have any questions, please contact support@uniz.com.
