Receiving and Unboxing your NBEE

Receiving and Unboxing your NBEE

OPEN IT UP

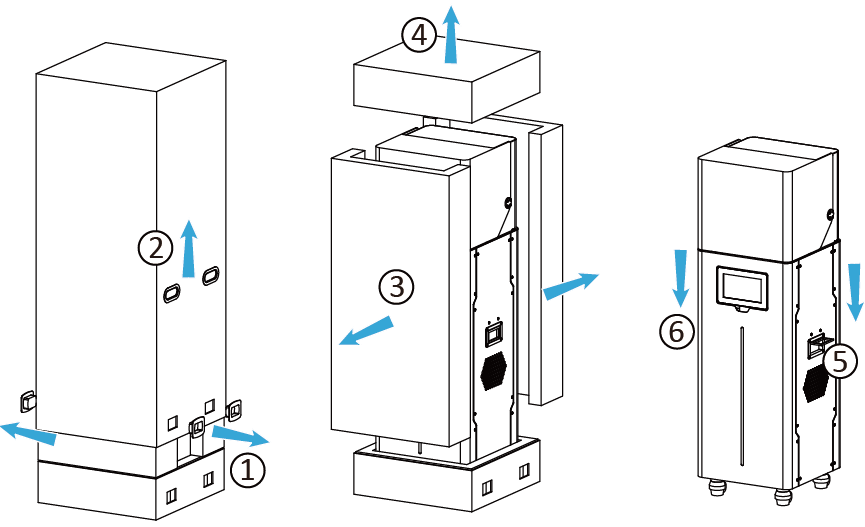

① Remove the four handle locks around the bottom of the box.

② Use the holders to lift the upper box up, and leave it to the side.

REMOVE THE FOAM PACKAGING

③ Remove front and rear foam.

④ Remove top foam.

TAKE THE PRINTER OUT

⑤ Remove the plastic wrap, then flip out the two handles on the sides of the printer.

⑥ Hold both handles and lift the printer out of the bottom foam, leave it aside and flip the handles back.



GET THE ACCESSORIES

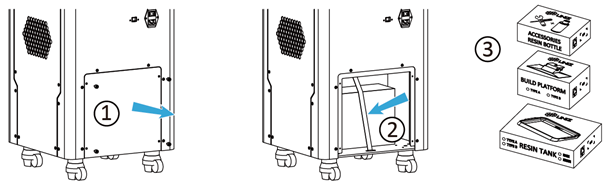

①   Remove the four screws on the back of the printer and the bottom rear cover plate.

②   Remove the packing strap.

③   Take out the accessory box, resin box, and Build Platform box.


Note that packing list would differ sometimes when it comes to different batch of production.

④   The accessory box contains essential accessories including power cord and flash drive etc.
