Repair Dental Scan Model

Repair Dental Scan Model

Press button【Repair Scan】in the top toolbar to pop up the "Repair Scan" box.

The repair scan tool allows for repairing the intraoral models. It exceeds the functionality of the basic repair tool by adding a basing function, making your model much easier to print and much more aesthetically pleasing.

Method 1：Cut Model by Plane Defined by Three Points
  1. Adjust the base-height in "Repair Scan" box.

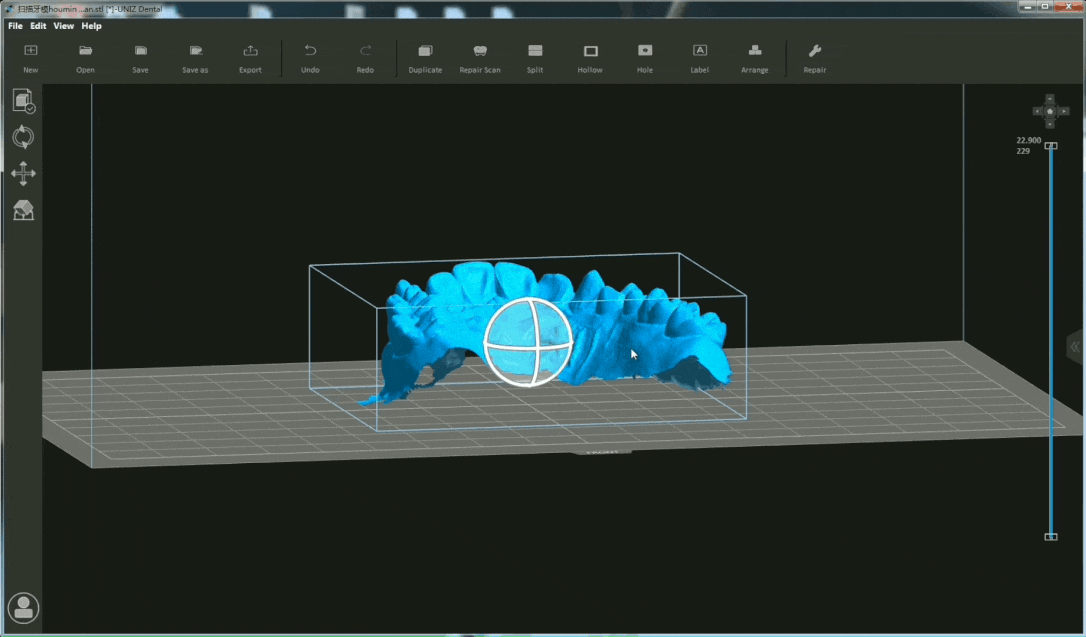

  1. Pick three points with the left mouse on the model surface to determine the cutting plane, the part that needs to be deleted will be marked in red by default. If the default selection is incorrect, please click the part to be deleted with left mouse.
  1. Click the "Repair" button selected model will automatically repair and complete the missing base.


Method2：Cut Model by Horizontal Plane



Input z value:

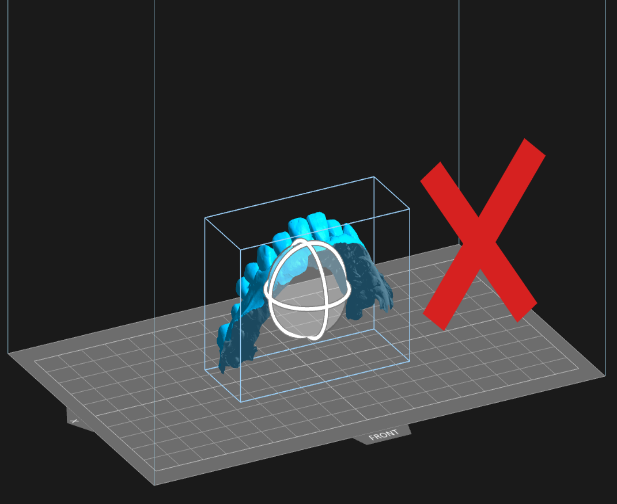

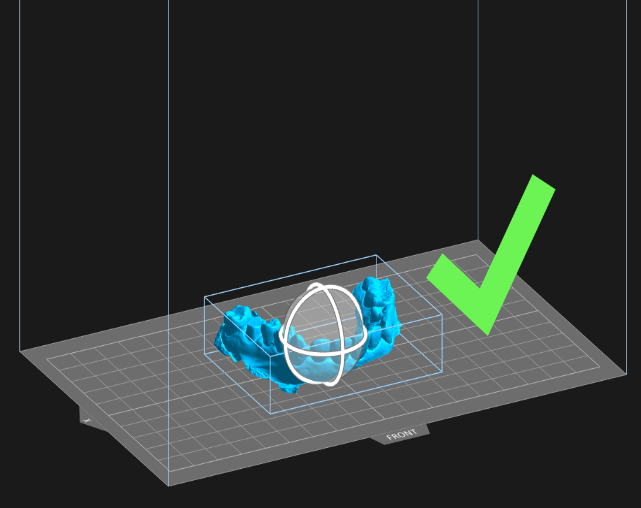

  1. Position the occlusal surface to face away from the build platform.
  1. Adjust the z value of the cut plane and base-height in the "Repair Scan" box.
  1. Click the "Repair" button selected model will automatically repair and complete the missing base.
Modify z using mouse:
  1. Position the occlusal surface to face away from the build platform.
  1. Adjust the base-height in "Repair Scan" box.

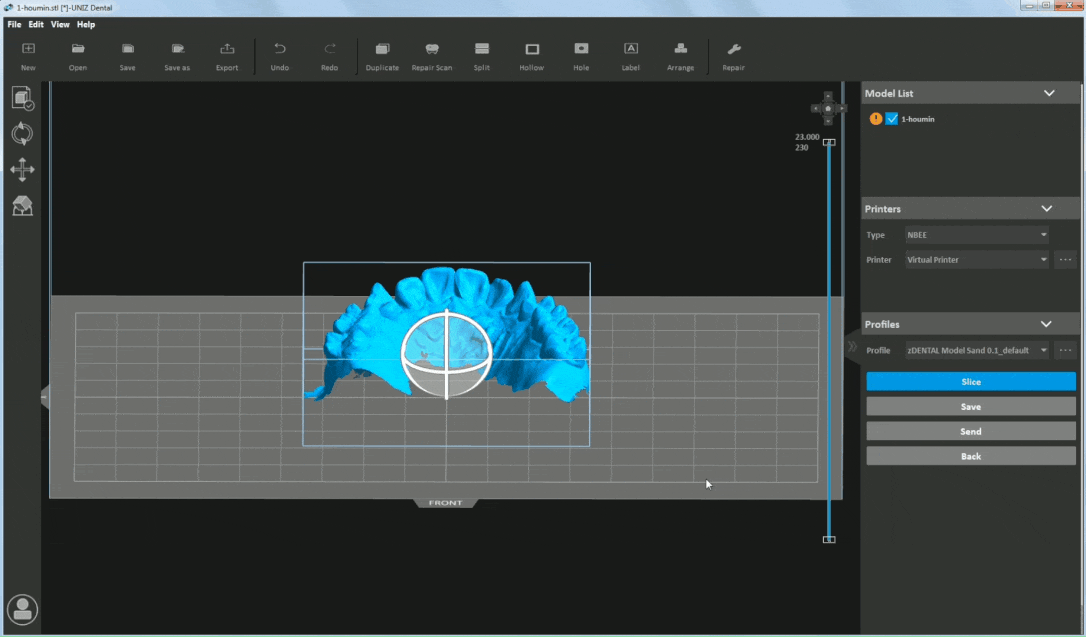

  1. Move the mouse to adjust the z value of the cut plane.
  1. Click the left mouse button to apply, the selected model will automatically repair and complete the missing base.
