Rotating a Model in UNIZ Dental

Rotating a Model in UNIZ Dental

Change Orientation

Models need to be adjusted the angle according to its characteristics when printing, in order to obtain better printing results.

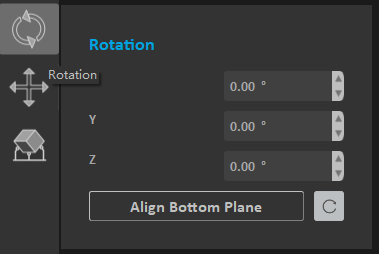

1. Click  in the left toolbar to enter the rotation interface.

2. Press the left mouse button on the selected model to drag, and the model will rotate freely.
  1. Select the model, the manipulators will be show on the model. Press the left mouse on the circle of the manipulators to drag and release, the model will rotate around the corresponding axis.
  2. The activated object can also be rotated by inputting X/Y/Z values in the field. Press Enter to apply changes. Users can also click the up and down button to change the angle.
3. Press the "To Align Bottom Plane" button, select the bottom surface on the model (the mouse turns into an orange line), and click the left mouse button to rotate the selected surface paste on the tray.

Notes:
Rotating a model along the X- or Y-axis supports will be removed.
Rotating a model along the Z-axis supports will not be removed.
