Scaling a Model in UNIZ Dental

Scaling a Model in UNIZ Dental

Modify Size

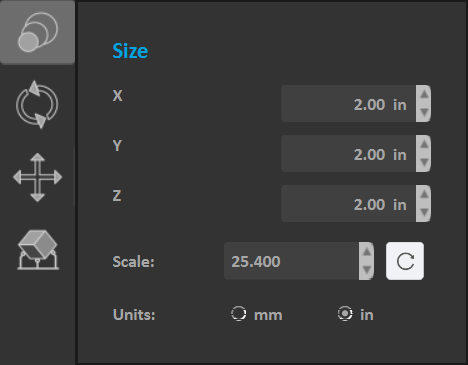

  1. Press the Size Button  on the main tools will open following sub menu.
Once the Size tab is open, the activated object can be scaled freely by holding the left mouse button on the object and moving the mouse.
  1. Select the model, the manipulators will be suspended on the model, click and press the zoom icon on the top right of the controller, and drag the zoom model.
The activated object can also be scaled by inputting X/Y/Z values in the field. Press Enter to apply changes. Users can also click the up and down button to change the size. The object will scale uniform in Uniform Scaling mode.
Modified scale: If a single model is selected, the model will be scaled according to the modified scale; if multiple models are selected, the scale of all models will be set to 1, and the modified scale will be scaled relative to 1.
Units: toggle between millimeters and inches.
TIP
Changing an object's size will break previously generated supports and you will need to redo these.
