Part I: Work with model in UNIZ Dental V2 software.

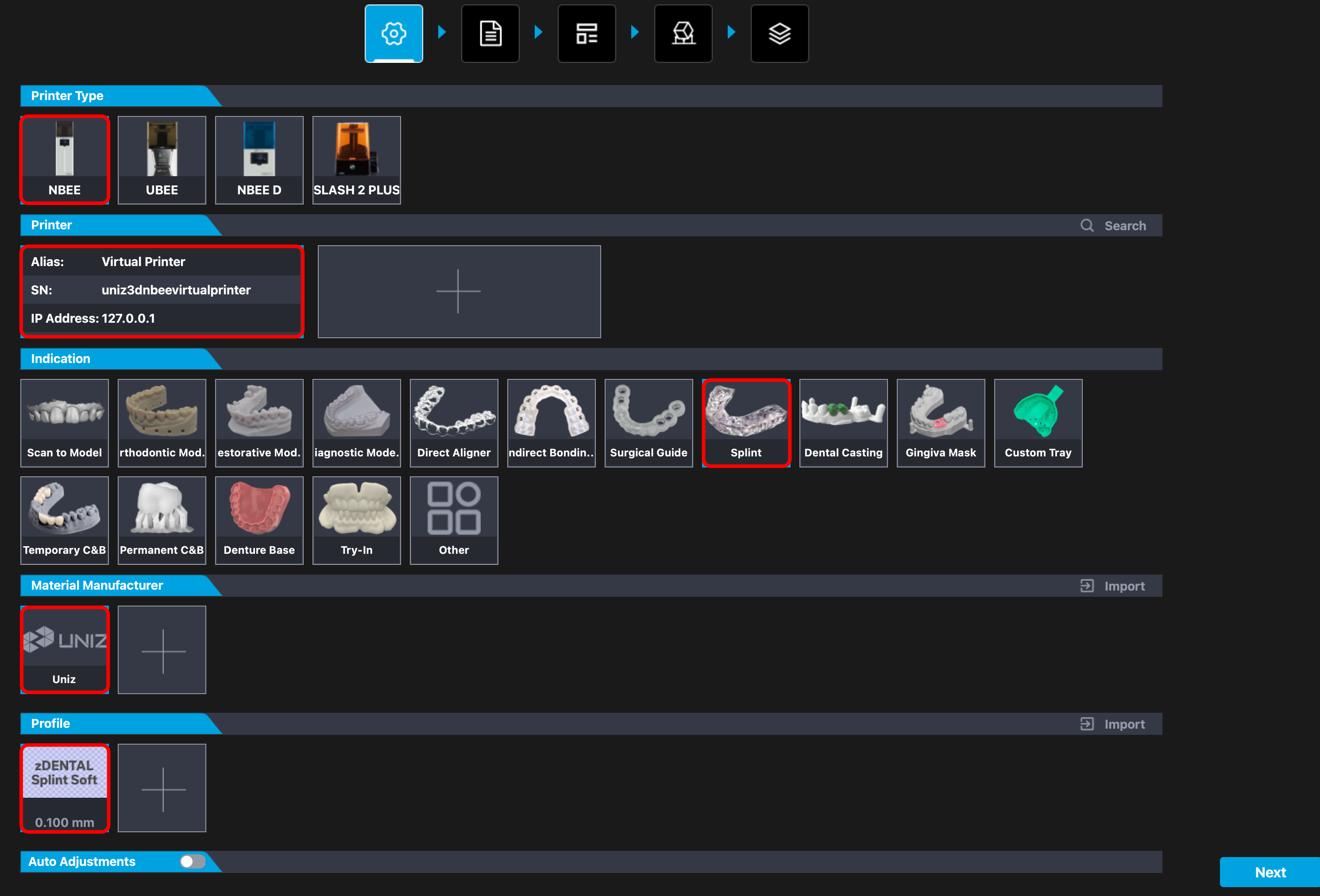

1. Select Printer model - Printer – Indication: Splint - Proper profile, and click on Next (take NBEE as an example).

1. Select the corresponding profile of the resin that you will use.





2. Double-click the profile to view all detailed parameters of the resin. If the printed splint do not fit optimally, you can adjust the inner wall thickness of the parts by modifying the Internal Compensation (normal layers). To make it loose, set positive value, to make it tight, set negative value, the larger the value, the more obvious the effect. For the functions of internal and external compensation, please refer to the following image.








2. Import splint STL models.

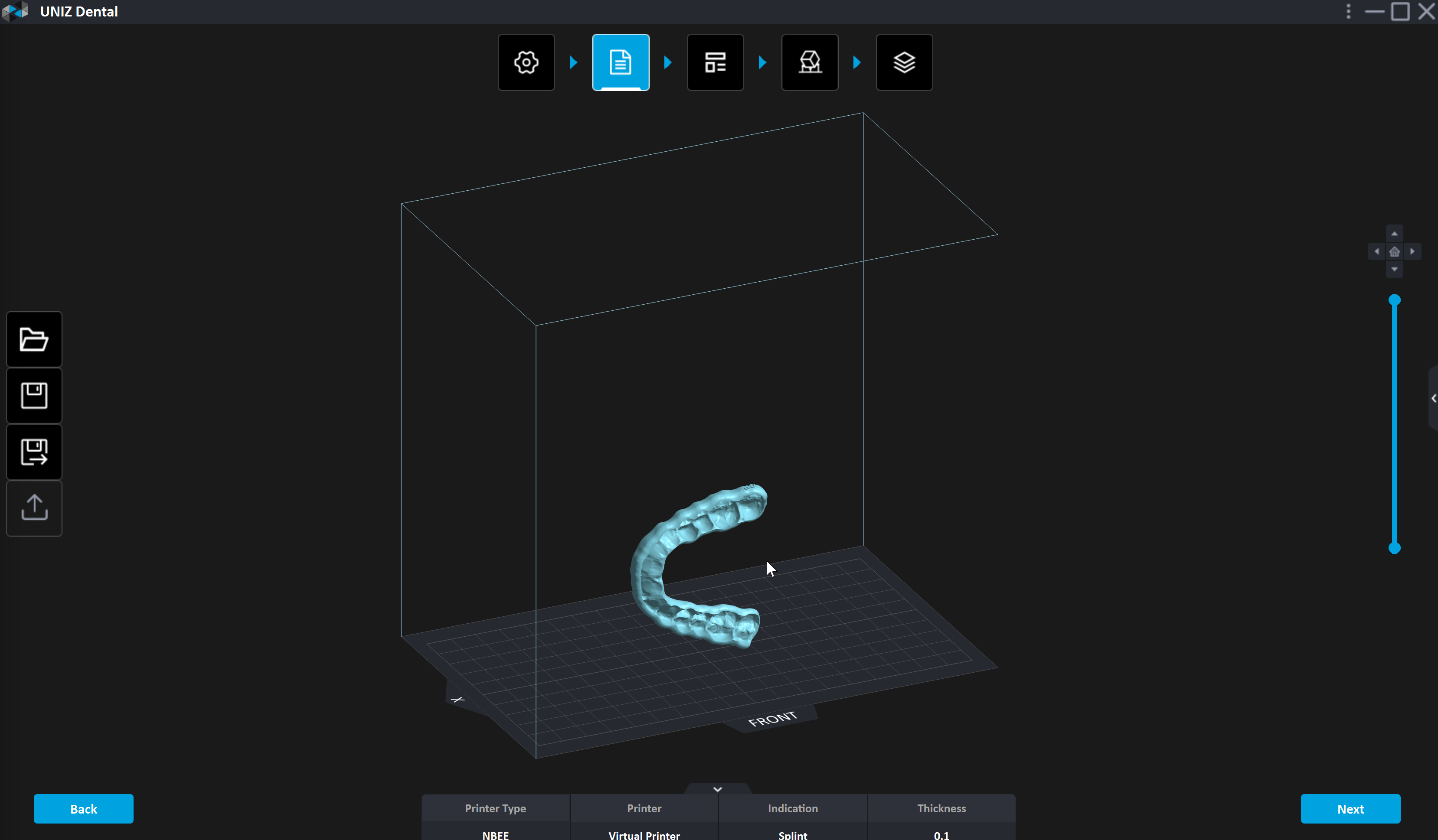

1. Select the STL files from your computer and import them.




3. Adjust the layout of the model.

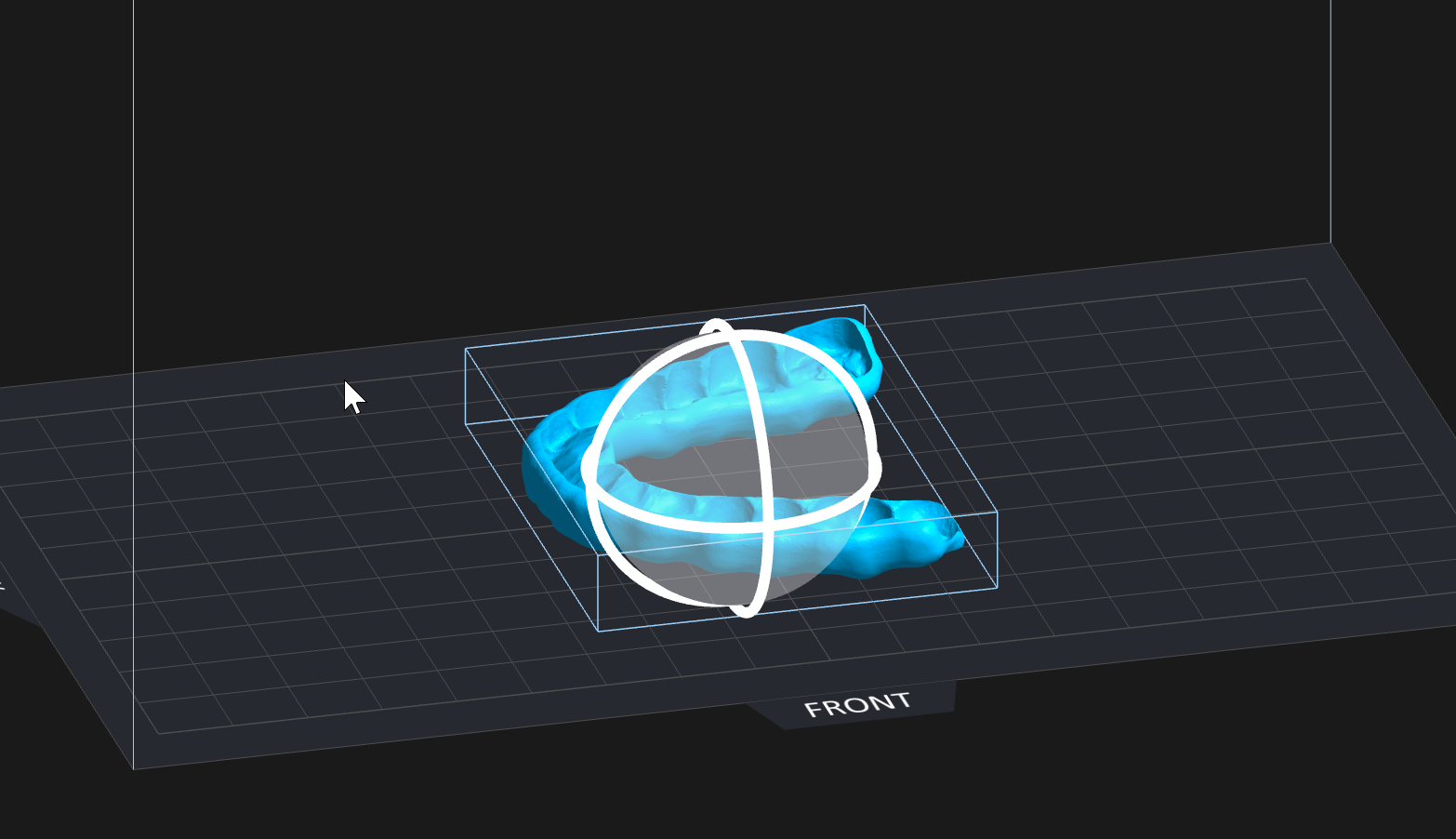

1. Adjust the imported models distribution and angle by adjusting the manipulator.

2. Make sure the occlusal surface of the splint is facing down.



4. Automatic support.

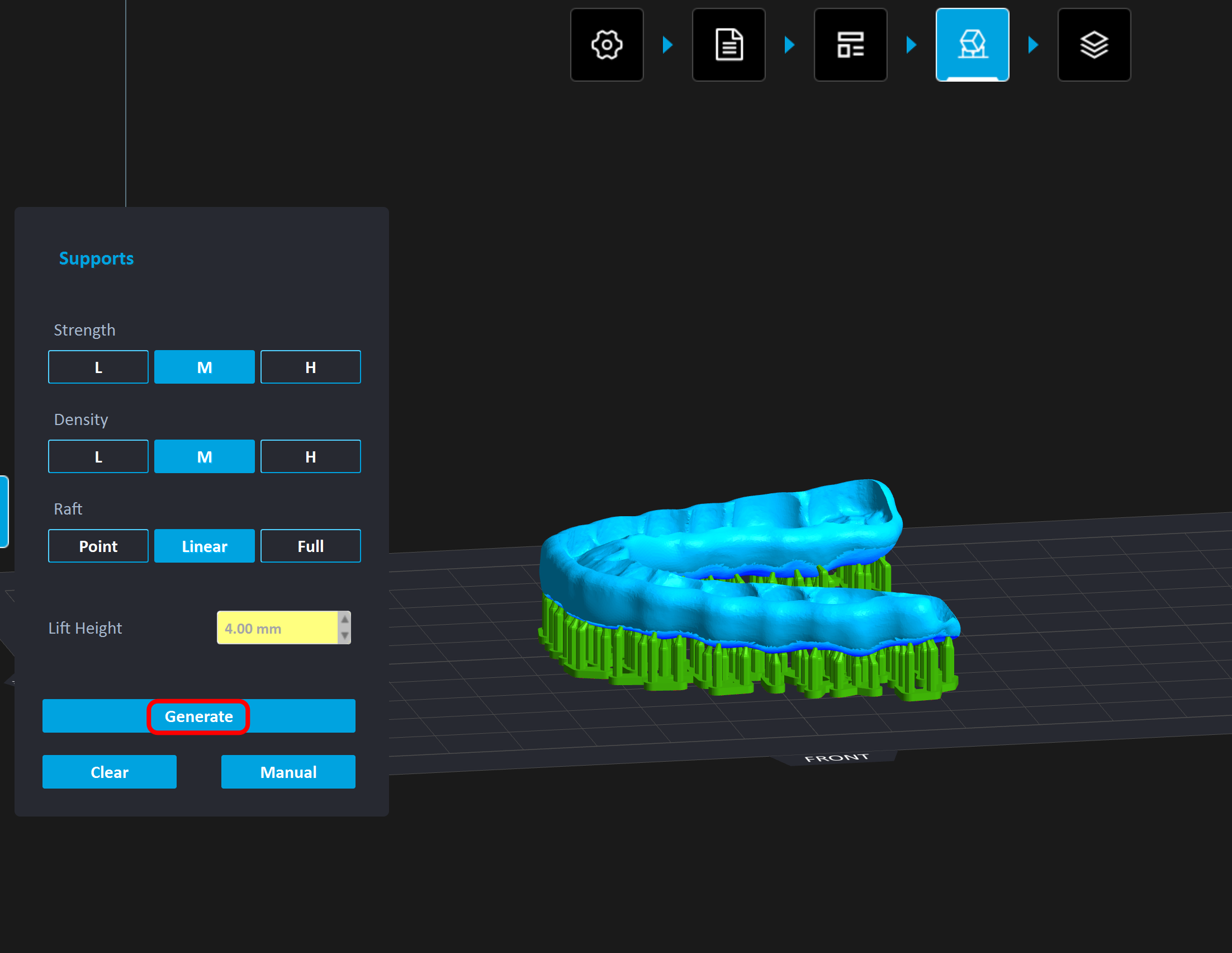

1. Select all models and click "Generate" to generate supports using the default support parameters. The recommended lift height is 4mm (For experienced users, you can also adjust every detailed parameters of supports by switching to advanced interface in settings of UNIZ Dental V2).




5. Manual adjustment of supports:

1. Click Manual to enter manual editing mode. You can add more supports by left clicking on the model surface, as well Left click the support point or hold down the left mouse button and drag to select the support you don'tThen press DELETE key of the keyboard to delete all selected supports, and click Apply.

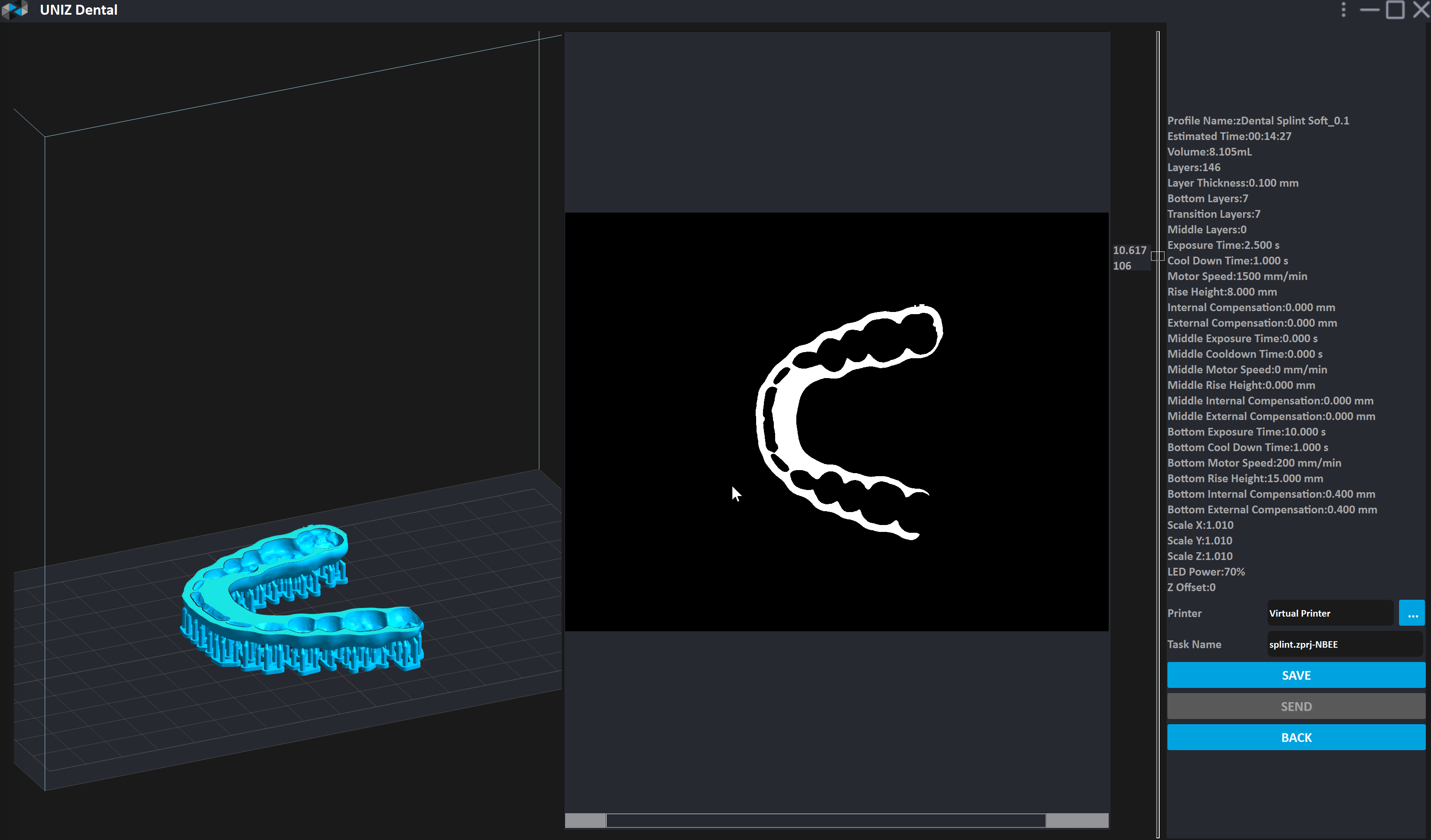

6. Slicing.

1. Preview the sliced model after slicing to ensure that all lowest points have supports and that there are no suspended areas. If supports are insufficient, you can return to the previous interface to manually add more.





Part II: Printing models

1. Ensure Optimal Working Conditions:

1. Place the printer on a flat, stable place, and make sure the wheels, build platform, and resin tank are securely locked.

2. Verify that the resin tank is within its lifespan and that there are no residues left on the build platform or in the resin tank.

3. Ensure that both the UI firmware and system firmware are updated to the latest version.

4. Thoroughly mix the zDental Splint Soft resin before pouring it into the resin tank.

2. Use at least 200ml to prevent print failures due to insufficient resin.

3. Select the slicing file in the printer and initiate the printing process.



Part III: Post-processing

1. Detaching.
   Detach the printed modes from the build platform with UDetach (automatically), or with metal scrapper (manually).



2. Cleaning

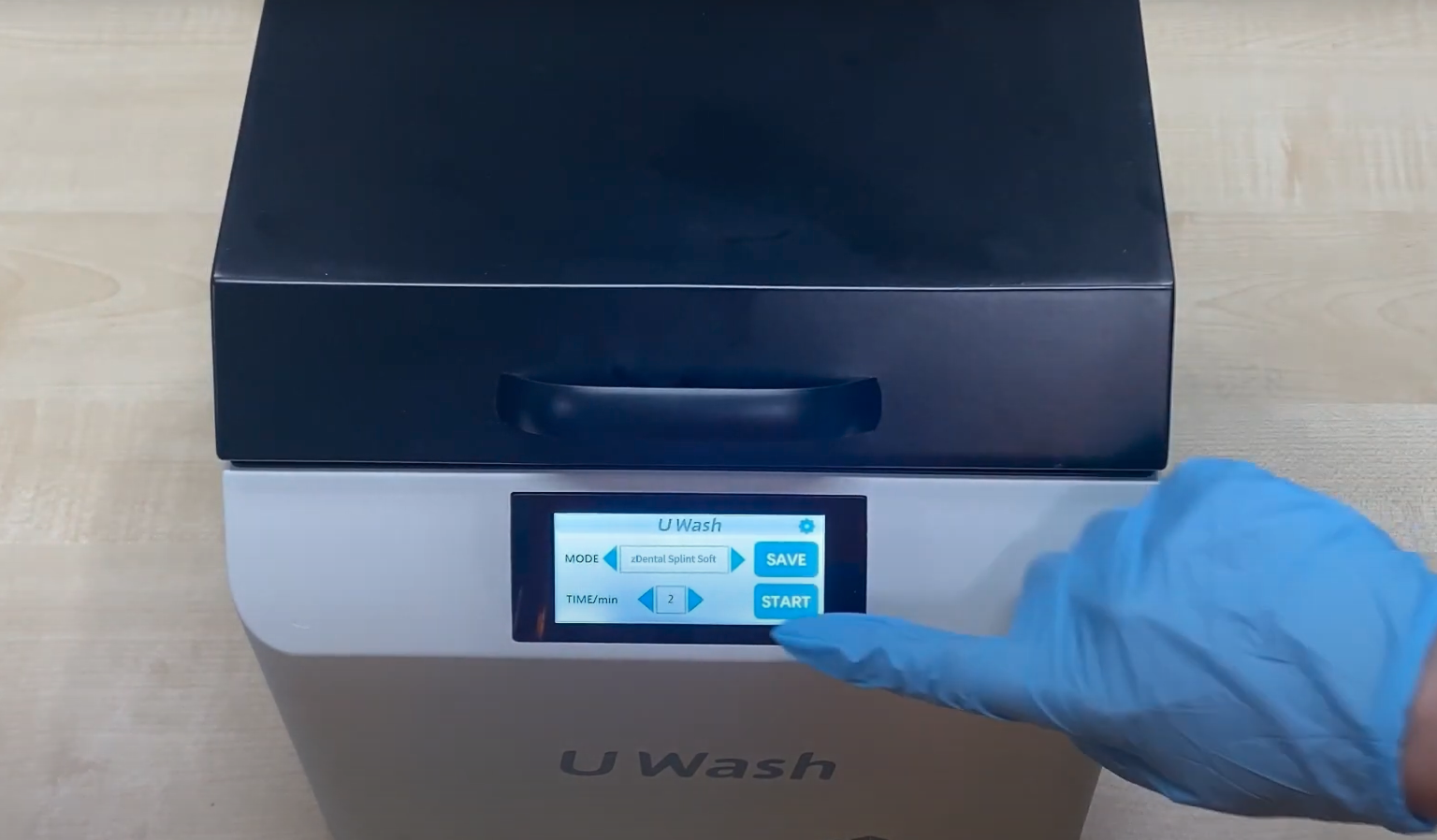

1. Clean the printed splint with UWash (UNIZ ultrasonic washer) and alcohol (greater than 90% concentration) or IPA for 2 minutes.







3. Drying.

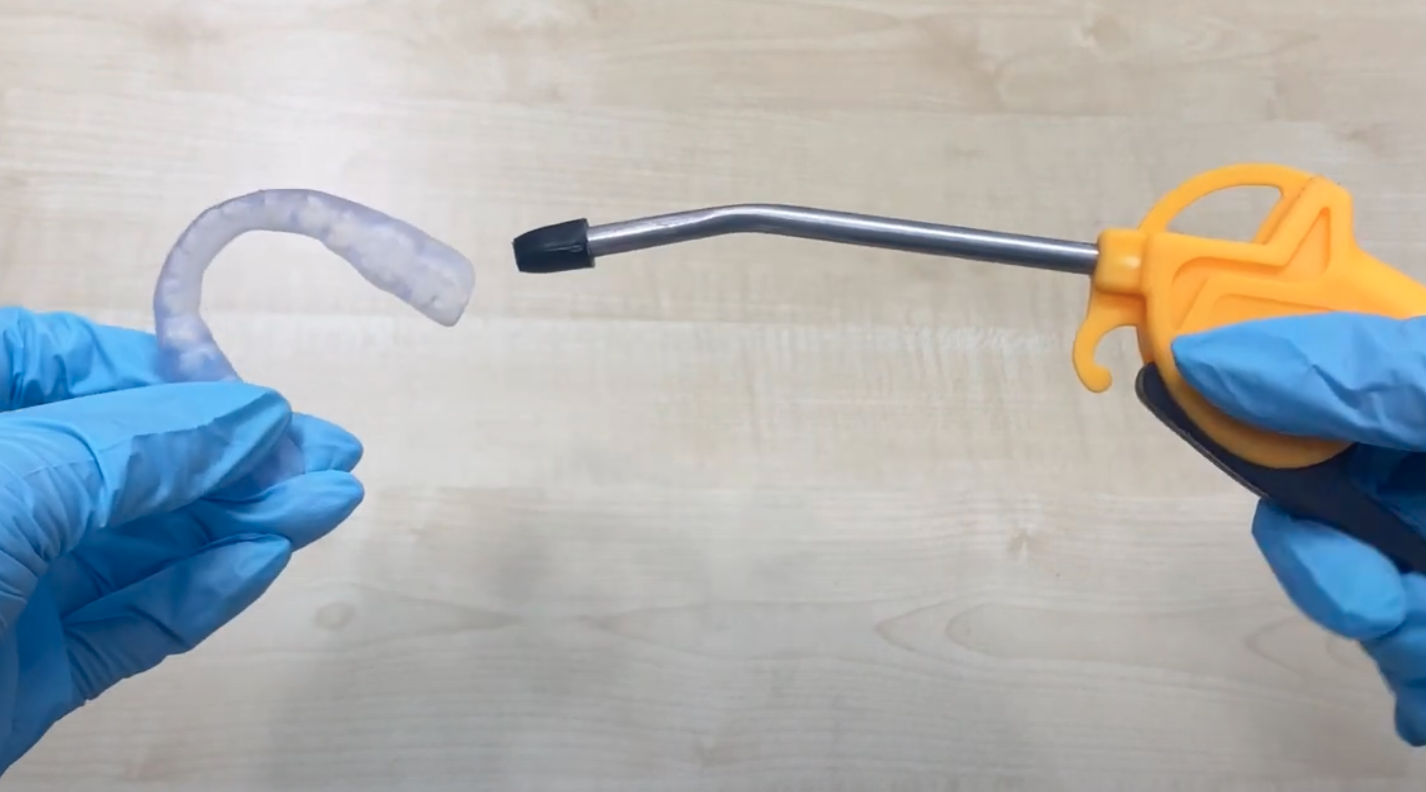

1. Use a compressed air gun to blow dry for 3 minutes or let it sit to air dry for 30 minutes.




4. Support removal.

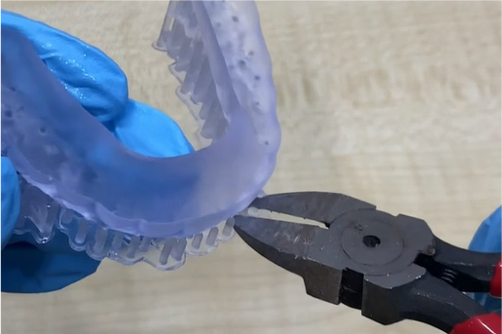

1. Use small scissors or flat-nose pliers to cut the supports close to the model. Be careful not to apply too much force to avoid breakage.




5. Polishing

1. Use an electric sander (preferred) or sandpaper to smooth out the residual support points on the model, making the surface smoother.

2. During sanding, take proper safety precautions by wearing safety goggles and gloves. Focus on the areas around the support points, sanding until they are no longer visible.




6. Curing.

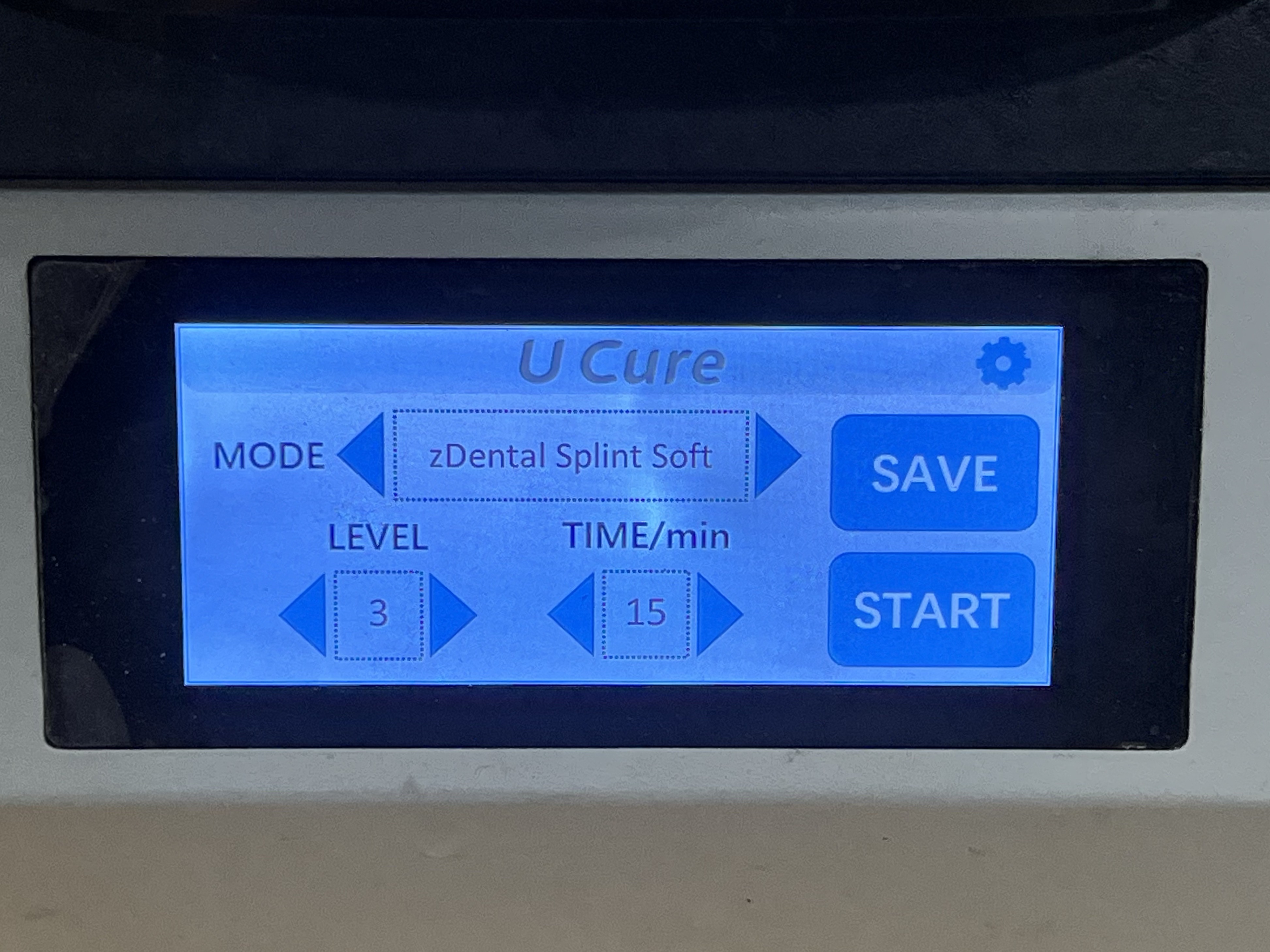

1. Cure the printed parts with UCure (UNIZ curing machine). Select zDental Splint Soft settings (level 3, 15 minutes for each side, totally need 30 minutes), then click Start.




7. Fitting test.

1. If the fit is not optimal, please return to Step 1 of Part I to modify the Internal Compensation for adjustment, then print again until the fit is satisfactory.
