UAir Remote Control User Manual

UAir Remote Control User Manual

This article applies to UAir

Applicable to different models of converters (receiver remote control socket timing socket) of our company, select different product function settings.

How to pair the socket (receiver)

Insert the socket (receiver) into the wall socket or connect it to the power supply, and press the button on the socket (receiver) (press the off button for BK series with timing) for 2~3 seconds when it is off (LED light is not on). When you see the indicator light on the socket (receiver) flash once per second, let go. At this time, aim the remote control at the socket (receiver) and press the on or off button of the selected channel on the remote control. When the indicator light on the socket (receiver) flashes quickly for 1 second, it means that the remote control and the receiver (socket) are successfully paired.

How to use multiple remote controls to control the same socket (receiver)

Confirm that the existing socket (receiver) is turned off, press and hold the button on the remote switch (socket) for 2~3 seconds. When the indicator light on the socket (receiver) flashes once per second, you can use another remote control to pair with the socket (receiver). Please refer to "How to pair the socket (receiver)" for how to operate.

How to cancel the pairing between the socket (receiver) and the remote control

When the socket (receiver) is turned off, press and hold the button on the receiver (socket) for 5 seconds. When the indicator light of the socket (receiver) flashes once per second, flashes several times quickly, and then returns to flashing once per second, it means that the original pairing with the remote control has been cleared and can be re-paired.

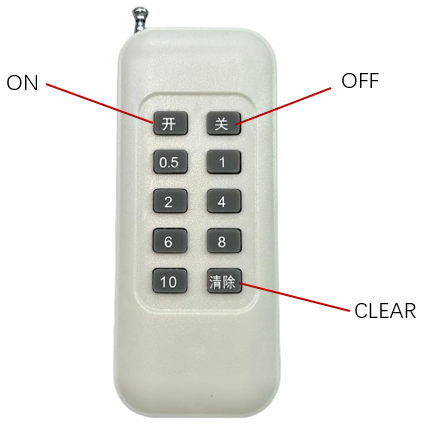

Remote control

The remote control is divided into 1-level and 5-level remote controls and timer remote controls. The 5th level on the 4-level remote control is the full-on and full-off button.

Timer off setting

  1. After inserting the socket (receiver) with timer or timer socket into the wall socket or connecting to the power, press the above button continuously, and the indicator lights will light up in sequence: Normally open-0.5-1-2-4-6-8-10-off. Indicate the set time to turn on and turn off at the agreed time respectively. H: represents hours.
  2. To switch between timed off and scheduled on, first press the button to the scheduled on time, the corresponding indicator light will light up, then press and hold the button for 2~3 seconds, and see the indicator light change from normally on to flashing for seconds, then let go, and the scheduled on setting is complete. (The indicator light is always on for: timed off, and the indicator light flashes for seconds for: scheduled on)
  3. To switch between hours and minutes for timed off, first press the button to the minute time, and the corresponding indicator light will light up (seven gears of 5-10-15-20-30-40-50 minutes), then press and hold the button for 2-3 seconds, and the setting is complete when you see the indicator light change from always on to flashing for seconds. (The indicator light is always on for: hours, and the indicator light flashes for seconds for: minutes)
  4. Remote control timing: The button numbers on the remote control represent the countdown off time (hours). Just press the corresponding number button, and the remote control switch (socket) will turn on and count down to automatically turn off.
  5. Precautions: After setting the required time for the timed socket for 2 seconds, pressing the button again will turn it off (reset).
Notes
Note: This product is for indoor use! The total power of the connected electrical appliances must not exceed the maximum power of the product!
If you encounter any problems or uncertainties during the process, please contact support@uniz.com.
