UNIZ Dental V2 support parameter diagram
Summary

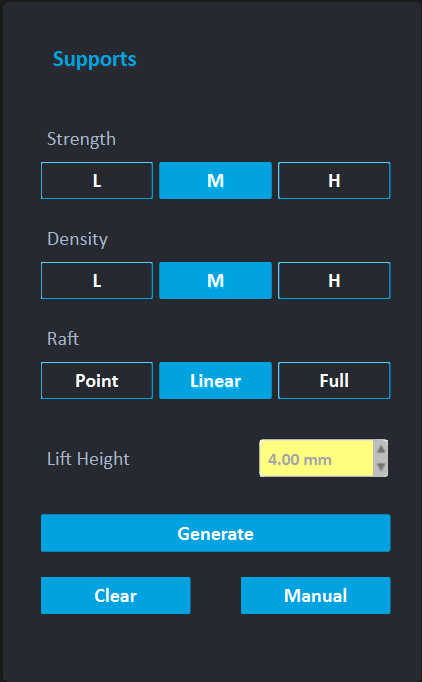

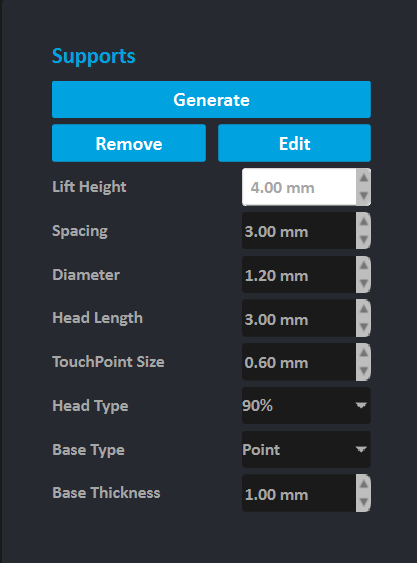

In order to provide users with greater convenience, we have upgraded the UNIZ dental software in version V2.5.0.8. After this update, the support parameters have transitioned from being freely adjustable to simplified buttons. Now, users can easily select the desired support strength according to different applications, facilitating their workflow.
Recommended Support Parameter Diagram
Density Level | Strength Level | Lift Height | Spacing | Diameter | Head Length | Touch Point Size | Head Type | Base Type | Base Thickness | |
Surgical Guide | H | L | 4.00mm | 2.50mm | 1.00mm | 1.20mm | 0.40mm | 100% | Full | 1.00mm |
C&B | H | H | 4.00mm | 2.50mm | 1.80mm | 2.16mm | 0.90mm | 100% | Full | 1.00mm |
Splint | M | M | 4.00mm | 4.00mm | 1.20mm | 1.44mm | 0.60mm | 100% | Full | 1.00mm |
Tray | M | M | 4.00mm | 4.00mm | 1.20mm | 1.44mm | 0.60mm | 100% | Full | 1.00mm |
Direct Aligner | M | L | 4.00mm | 4.00mm | 1.00mm | 1.20mm | 0.30mm | 100% | Linear | 1.00mm |
Gingiva | M | M | 4.00mm | 4.00mm | 1.20mm | 1.44mm | 0.60mm | 100% | Full | 1.00mm |
Model | M | M | 4.00mm | 4.00mm | 1.20mm | 1.44mm | 0.60mm | 100% | Linear | 1.00mm |
Density | Spacing |
Low | 6.00mm |
| Medium | 4.00mm |
High | 2.50mm |
| Strength | Diameter | Head Length | Touch Point Size |
Light | 1.00mm | 1.20mm | 0.30mm |
Medium | 1.20mm | 1.44mm | 0.60mm |
Heavy | 1.80mm | 2.16mm | 0.9mm |
Noted: The support could be generated automatically, but in case the object you print is not sufficient in support, you can always addon manually!
