What are the accessories

This article applies to NBEE, NBEE D, NBEE J, NBEE H.

Where are the accessories

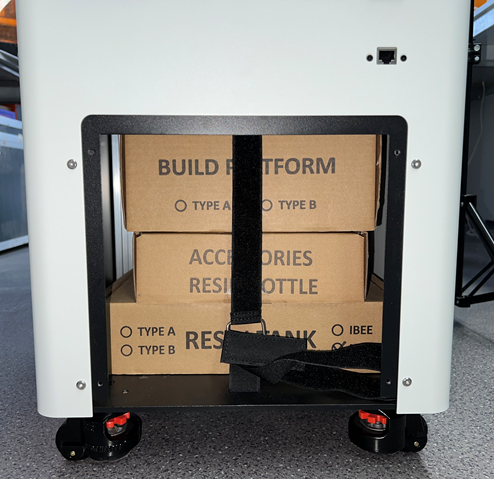

There is a cover plate at the bottom of the NBEE back casing. Remove the screws, you will see the accessories boxes. And paper documents on top of NBEE.

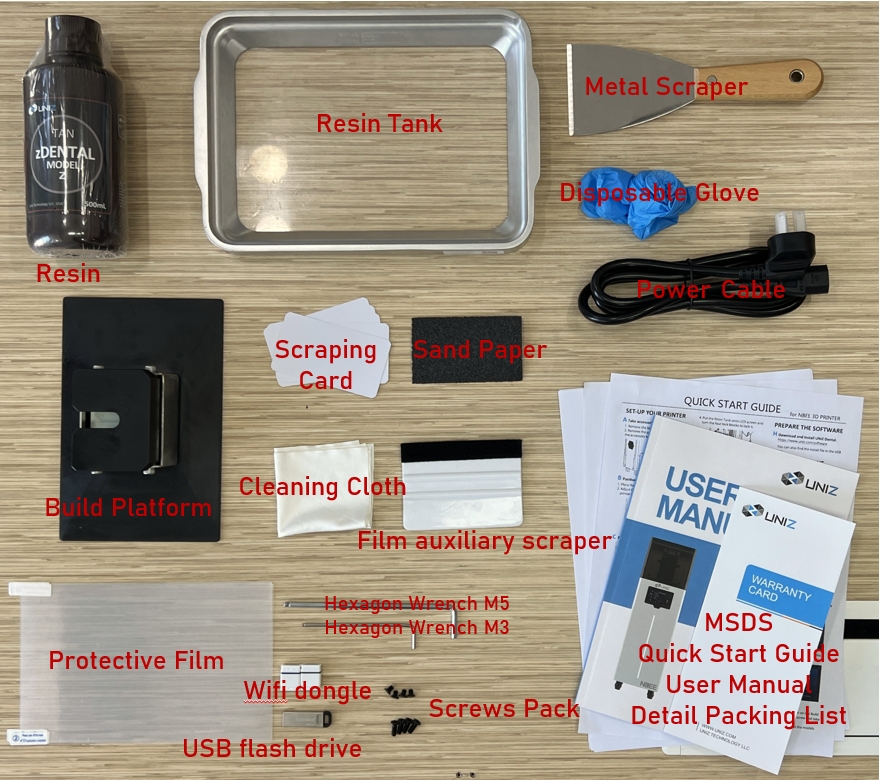

What are the accessories



NO.	Accessory	Amount	Usage
1	Resin Tank	1	The resin tank serves to store liquid resin material and provide it for printing operations.
2	Build Platform	1	The cured resin layers of the print adhere sequentially to the Build Platform during the printing process.
3	Power Cable	1	The power cable connects the power supply to the device to provide the required electricity.
4	USB Flash Drive	1	There is a test file inside it for the first printing test.
5	WIFI Dongle	2	The printer does not have built-in Wi-Fi function. Plugging the Wi-Fi dongle into the NB's USB interface can help NB connect to Wi-Fi, there are two identical ones, one of which is spare.
6	Scraping Card	5	Used to check and stir the resin in the resin tank.
7	Sand Paper	1	After the build platform has been used for a period of time, the surface friction may not be enough. At this time, you can use sandpaper to polish the platform diagonally.
8	Protective Film	5	Protect the LCD screen. When resin solidifies on the protective film, it should be replaced in time.
9	Metal Scraper	1	Used to shovel the model from the build platform.
10	Film auxiliary scraper	1	Used to drive away air bubbles under the screen protector when applying it.
11	Resin	1	The gifted resin can be used for the first test printing.
12	Disposable Glove	1	Protects skin from damage when in contact with liquid resin.
13	Cleaning Cloth	2	Used to wipe LCD screens and touch screens.
14	Hexagon Wrench M5	1	Used to remove and install M5 screws when servicing the printer.
15	Hexagon Wrench M3	1	Used to remove and install M3 screws when servicing the printer.
16	Warranty Card	1	Information about NBEE’s warranty policy.
17	MSDS	1	Material Safety Data Sheet: Provide safety information about resin.
18	Quick Start Guide	1	Guide to help users install and use NBEE.
19	User Manual	1	Provide users with detailed information and guidance on how to properly use a product or service.
20	Detail Packing List	1	A list of all items of NBEE box to help users check them.
21	Screws Pack	1	Spare screws for resin tank.
